Brief Introduction Of Lab glass distillation column

KAIMINA Laboratory Distillation Columns are designed for solvent recovery, organic compound purification, and process development. Suitable for laboratory and pilot-scale applications, featuring customizable column diameters, packing materials, reflux systems, and high separation efficiency.


Working Principle
 A distillation column is a tower-type gas-liquid contact device. It utilizes the different volatility of the components in a mixture—that is, the different saturated vapor pressures of the components at the same temperature—to transfer lighter components (low-boiling substances) from the liquid phase to the gas phase, while heavier components (high-boiling substances) from the gas phase transfer to the liquid phase, thus achieving separation. Distillation columns are also a widely used mass and heat transfer device in laboratories and petrochemical production. They are suitable for the separation and purification of organic mixtures.

Advantages

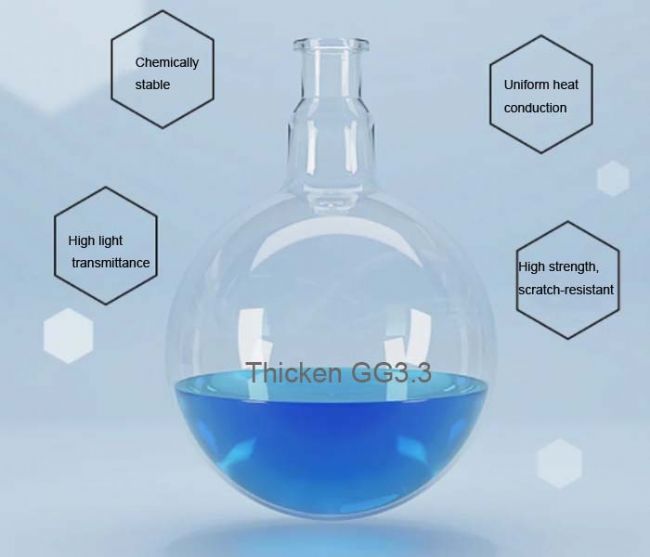

1. Material in contact with materials: Thickened high borosilicate 3.3 glass;
2. Tower volume: 1-200L, other heights can be customized;
3. Tower height: 0.5-2m, other heights can be customized;

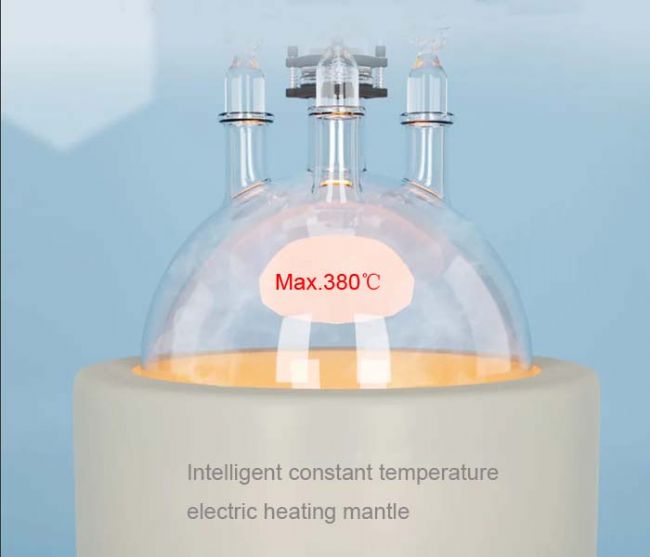

4. Intelligent constant temperature electric heating mantle, maximum heating temperature up to 380℃;
5. Minimum operable vacuum: ≤0.1mbar.


Why choose us?

1. High Separation Concentration
Under suitable operating conditions, separation concentrations can reach the PPM level.
2. Simplified Column Structure
Suitable for separating small quantities of valuable materials.
3. Automatic Reflux Ratio Control
Facilitates experimental adjustment.
4. Accurate Temperature Control
Both the distillation column and reboiler use PID intelligent temperature control, further facilitating experimental adjustment.
5. Intermittent/Continuous Distillation
Optional vacuum distribution tubes allow for continuous distillation without affecting the overall vacuum level.

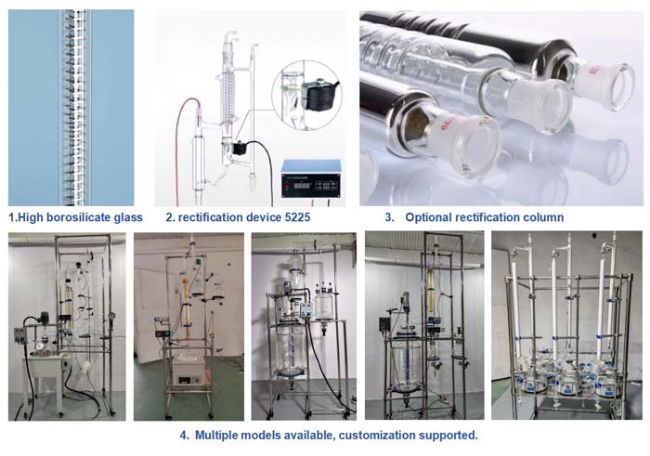

6. Electrically Heated Distillation Column
High-borosilicate glass, high transparency, corrosion resistance, and high temperature resistance, facilitating observation of various phenomena during the distillation process.

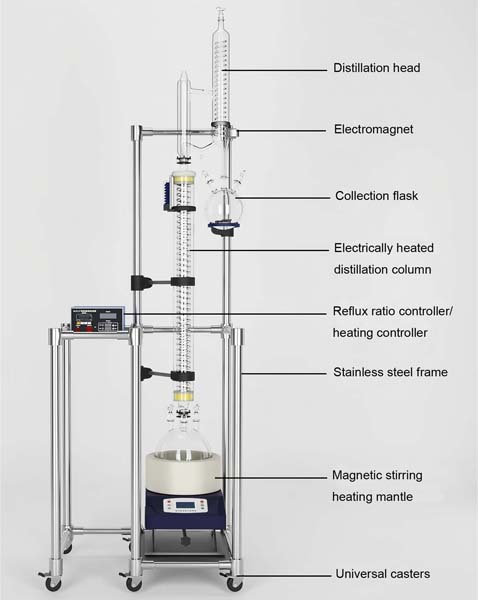

7. 5225 Distillation Apparatus
This apparatus consists of a 5225 distillation head and a reflux ratio controller, achieving a vacuum level of 0.098%. High separation efficiency and easy cleaning.
8. Multiple Distillation Column Options
Customized thickened ground joints ensure durability, breakage resistance, and strong sealing performance.

It is uitable for heating/cooling applications requiring precise temperature control. Works with high/low temperature devices or heating/cooling systems, using a jacketed design for precise temperature control and ensuring uniform heating of materials.



For more information about our Lab glass distillation column, please contact us for technical support and quotation.
