ZYCJS series of straight drinking pure water purification is a water treatment and purification equipment which use reverse osmosis technology to remove the heavy metals, bacteria, viruses, organic matter, industrial pollutants and other harmful substances in water, through the pretreatment system, reverse osmosis device, sterilization treatment system, Cleaning system and electrical control system, can be municipal tap water or groundwater purified to meet the national health drinking water standards.
The Technical Parameters of Mineral Water Machine:
| Raw water |
Tap water, ground water,(water test report can be provided),
water pressure > 0.3MPa, the best working temperature of 25℃
|
| Raw water condition |
water TDS ≤ 500PPM |
| Out water |
Water conductivity ≤ 20 us/cm |
The Mode of Mineral Water Plant:
| NO |
Model |
Water production
(L/H)
|
Voltage/Power
(V/Kw)
|
Device host size
(L*W*H mm)
|
Water tank
(L/material)
|
| |
ZYCJS-60L
|
60L |
220/0.05 |
700*600*1400 |
11G Pressure bucket |
| |
ZYCJS-120L
|
120L |
220/0.05 |
700*600*1400 |
11G Pressure bucket |
| |
ZYCJS-150L
|
150L |
220/2.5 |
700*600*1400 |
20G Pressure bucket |
| |
ZYCJS-250L
|
250L |
380/2.5
|
1500*600*1400 |
250/stainless steel/PE |
| |
ZYCJS-500L
|
500L |
380/3.5
|
1500*600*1400 |
500/stainless steel/PE |
| |
ZYCJS-750L
|
750L |
380/4.5
|
1500*800*1600 |
750/stainless steel/PE |
| |
ZYCJS-1000L
|
1000L |
380/6.0
|
1500*800*1600 |
1000/stainless steel/PE |
Note: Customization is available.
The Performance Characteristics of Mineral Water Machine:
• Electronic control system using manual / automatic integration;
• Pretreatment system automatic flushing function;
• The reverse osmosis body hosts with the function of automatic flushing and water tank full automatic double washing, which can extend the RO membrane life;
• The material of pipe is stainless steel food grade or UPVC or PPR.

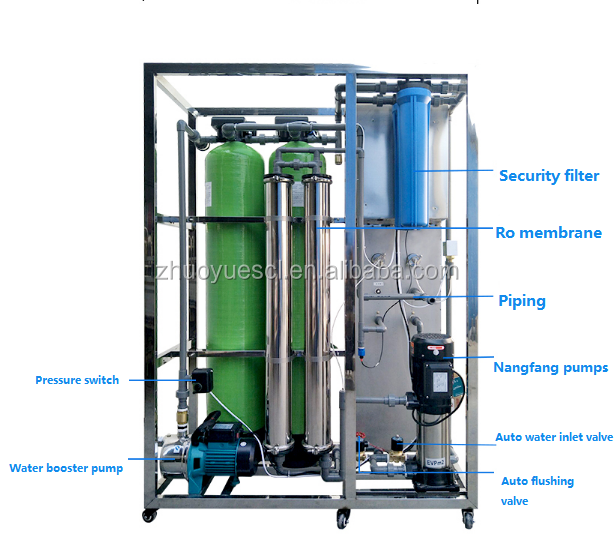

The Components of Mineral Water Machine:
• Multi-media filter: Remove the sediment, rust, suspended solids and other particulate impurities, iron and manganese ions; can be automatically washed;
• Activated carbon filter: To remove residual chlorine and other organic matter ions and pigments and odor; can be automatically washed;
• Precision filter: Remove more than 5um particles of impurities;
• The reverse osmosis system: imported reverse osmosis membrane, high pressure pump, high and low pressure protection, concentrated water flow meter, pure water flow meter, water solenoid valve, flushing solenoid valve, SUS304 stainless steel rack;
