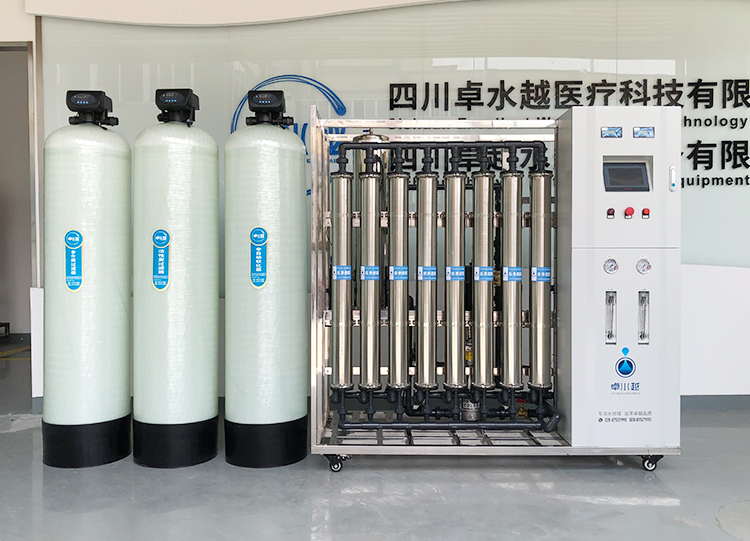

Model	ZYRO-2000L	Water yield		2m3/h @25℃
Production model	Single reverse osmosis system	Operation		Full automatic
Inlet water pressure	≥0.3Mpa	Raw water temperature		5℃—45℃
Total inlet water	≥4m3/h	Inlet water pipe		DN32
Inlet water index	City tap water , TDS≤500ppm	Desalination rate		≥ 99% @25℃
Water production index: conductivity ≤15µs/cm @25℃
Operation pressure	380V--50/60Hz	Power	1.6KW

Features

· High-precision filtration, nanometer pore size, the best pure water quality

· Manual/automatic dual control system can switch automatically

· It has safety devices such as power-on self-test, automatic shutdown protection when water is short of power and power failure, automatic shutdown of water when water comes in, shutdown when water is full, and no pressure protection.

· It has the functions of automatic flushing of RO membrane and automatic double flushing when the water tank is full, which can prolong the life of RO membrane

The process flow

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active Carbon filter--adsorb color, free chloride, organic matter, harmful matter, ect.

4. Antiscalant--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter-- 5um PP cotton filtrates micro-particles.

6. High pressure pump-- Provide pressure to RO membrane.

7. RO membrane -- 0.0001-0.001um;  remove more than 99% particles, colloids, bacteria, eliminating endotoxin and high molecular organic matter.

8. UV lamp--disinfect pure water for drinking.

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500㎡modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300㎡Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
