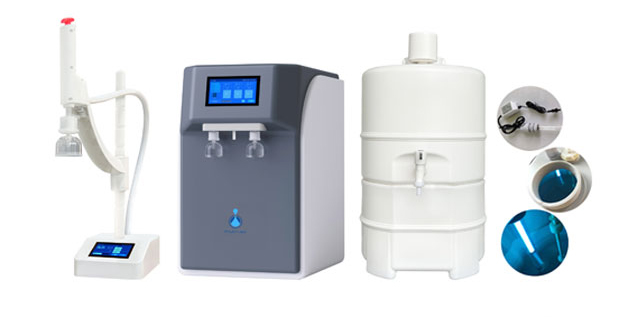

ZYS-Laboratory Ultrapure Water System
ZYS Using dual-stage RO membrane, TOC degradation and heat source removal composite technology, the city tap water is purified into laboratory grade 3 and grade 1 ultra-high purity ultrapure water that meets the national standard GB/T6682-2008.

Model list
Optional capacity(L/H)：10/20/40L/H
Flow rate ：Up to1.5- 2.0 liters/minute
Feed water requirements：Tap water, TDS＜400ppm,Temperature:25℃, pressure1.5-5.0KG

RO Water quality
Condutixity(25℃)：＜1-5μS/cm
Pollutant removal rate：99.5%
Oxidizable substances[in 0]：≤0.4mg/L
Evaporation residue：≤1.0 mg/L

DI Water quality
Resistivity（25℃)：17-18 .25MΩ.cm
Microparticles（≥0.1um）：＜1个/ml
Bacteria：＜0.1cfu/ml

UP Water quality
Resistivity（25℃)：18.25MΩ.cm
Microparticles (≥0.1um)：＜1个/ml
Bacteria：＜0.1cfu/ml
Heavy metal ions：＜0.1ppb

Features
★7-inch touch screen operation interface, animation display working mode, Chinese and English bilingual, graphical display of consumables life, water storage status, water quality parameters.
★Equipped with 4-way water quality online monitoring of inlet water, RO water, DI water, UP ultrapure water, diversified water extraction modes (quantitative, qualitative, and timing), and statistical water extraction records.
★Perfect consumables management, 3-color icons display consumables life and prompt step by step, can count the amount of water processed and view consumables replacement information.
★Set 3 levels of user management authority, with independent ID and password protection, each user has independent operation authority.
★With timed power on/off, standby, and screen off time management functions, the system has a time setting function;
★HDPE cone-bottom sterile water tank, equipped with air filter, filter material color display, immersion UV lamp, effectively inhibits bacterial growth.
★Internal circulation and over-standard discharge functions, one-button disinfection technology, to maintain low bacterial contamination level of the system;
★Optional TOC detection technology, can detect the TOC content of ultrapure water, detection range 0.1-500ppb (optional);
