Titan: Combined Flow Sensor / Totaliser for Corrosive Fluids
Hits:1124 Date: 4/25/2013

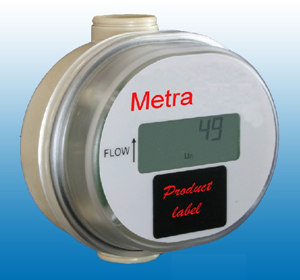

Titan Enterprises has launched the Metra-Flow OG2 - a new combined flow sensor and battery-powered six-digit flow totaliser for monitoring the delivery of corrosive and/or highly viscous fluids.
With a polycarbonate front cover, wetted parts moulded in polyphenylsulfone (PPS), PEEK, and silicon and spindles in 316 stainless or ceramic the durably constructed Metra-Flow OG2 is designed to give high performance with a low cost of ownership. It offers a standard flow range from 0.1 to 4 L/Min on 30 Cstk oil or post mix syrup and 0.2 to 4.0 L/min on water like liquids. The Metra-Flow OG2 utilises totally non-metallic wetted components including PEEK™, ceramic and an elastomer which makes it the ideal choice for the metering of corrosive fluids at temperatures up to 80C and pressures up to 10 Bar / 150PSI.
At the heart of the flow meter are a pair of toothed oval gears one of which contains chemically resistant PTFE coated magnets which signal the flow rate to the externally mounted indicator. The 6 digit totaliser display provides the accumulated total volume dispensed, in litres, enabling accurate inventory control and accounting for valuable fluids usage. OEM versions of the Metra-Flow OG2 are proven as a beverage syrup monitor and for filter monitoring.
Combining high quality materials and proven flow metering technology the Metra-Flow OG2 is designed to provide reliable, accurate operation throughout its estimated 4 year battery life. OEM versions of the Metra-Flow OG2 are available custom optimised to suit your application.
With over 40 years’ experience in flowmeter innovation and manufacture, Titan's company philosophy of "pushing the envelope by trying to do things a little different and better" has resulted in sales of over 250,000 products into 40 countries worldwide and a repeat purchase rate of 95%. Today Titan supplies innovative flow measurement solutions to a broad range of market sectors, including medical, chemical, petrochemical, food and drink, laboratory and pharmaceutical. For further information please visit www.flowmeters.co.uk.
---------------------
